BMW Z3
SEAT SPACERS
Kit 003 (BMW Z3 Seat Spacers)
These kits are no longer for sale, but please feel free to use my drawings to make them.
There are four sizes of spacer available...
10mm Kit
2x 10mm x 40mm x 80mm Aluminium blocks milled at an angle of 1.6 degrees.
2x 35mm x 35mm PLA wedges
2x M8 extended nuts with 12mm extension.
15mm Kit
2x 15mm x 40mm x 80mm Aluminium blocks milled at an angle of 2.4 degrees.
2x 35mm x 35mm PLA wedges
2x M8 extended nuts with 17mm extension

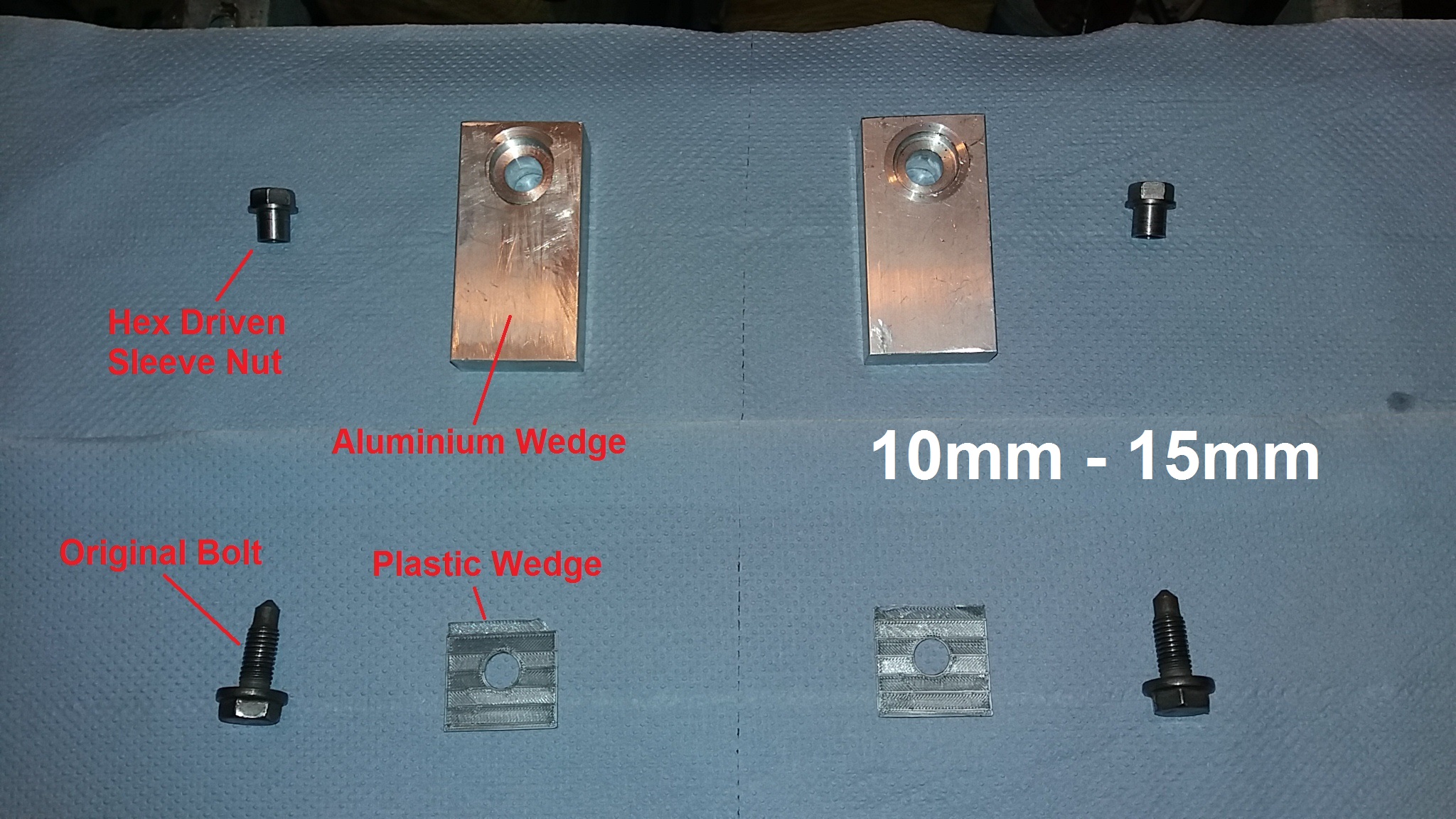

Image showing what is included in the 10mm and 15mm kits.
20mm Kit
2x 20mm x 40mm x 80mm Aluminium blocks milled at an angle of 3.2 degrees.
2x 35mm x 35mm PLA wedges
2x M8 x 20mm Zinc-plated sleeve nuts
2x M8 x 17mm Grade 8.8 studs
25mm Kit
2x 25mm x 40mm x 80mm Aluminium blocks milled at an angle of 4.0 degrees.
2x 35mm x 35mm PLA wedges
2x M8 x 25mm Zinc-plated sleeve nuts
2x M8 x 21mm Grade 8.8 studs

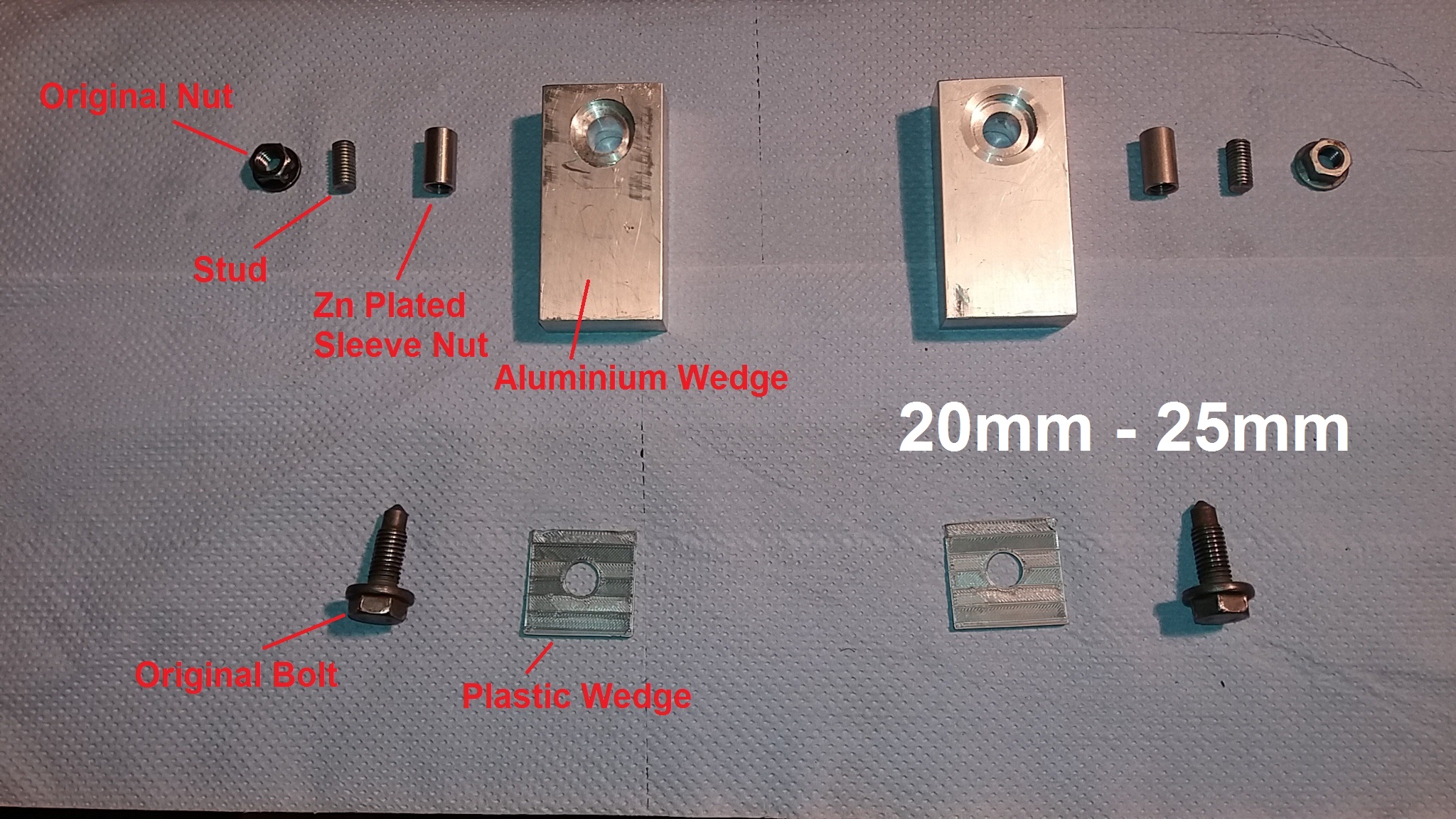

Image showing what is included in the 20mm and 25mm kits.

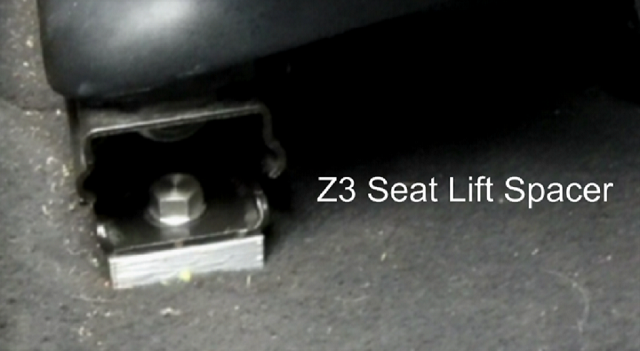

Image showing the spacer in use.
Before ordering a spacer kit, I suggest that you measure the amount of lift you want.
Here is a link to the discussion I had while I was developing the spacers - zRoadster.net
Below is a video that I made showing how to fit the spacers. At the end of the video, you can see the difference the spacers make to the tilt of the seat.
