BMW ZF S5D 320Z GEARBOX SHIFT PINS



Kit 007 (BMW 320Z Gearbox Shift Pin Drifts)

I make these kits to order.

The kit costs £50 (excl postage), or £55 via eBay.  As of Feb 2020, it costs £7 to post in the UK (1st class signed for) and £20 to post worldwide (tracked and signed).

Please contact me (sales[at]porterbility.co.uk).  If you prefer the security of an eBay sale, I will put a kit on eBay and send you a link to the page.

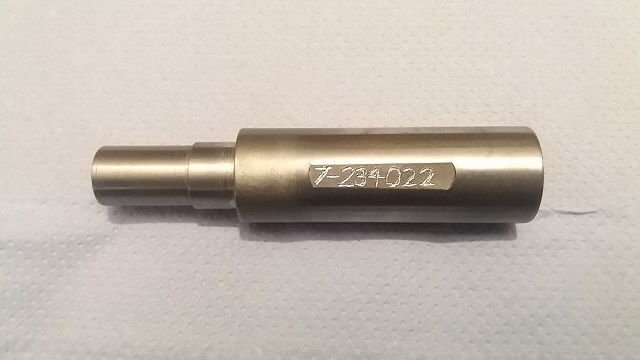

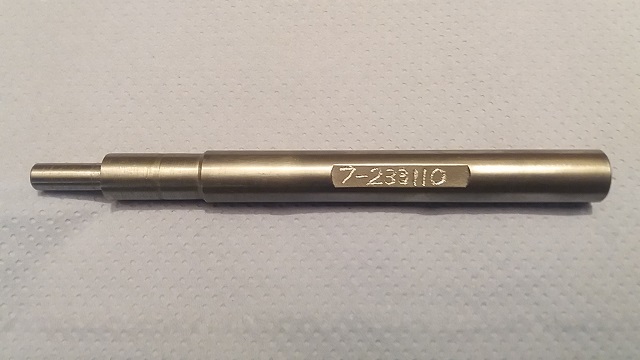

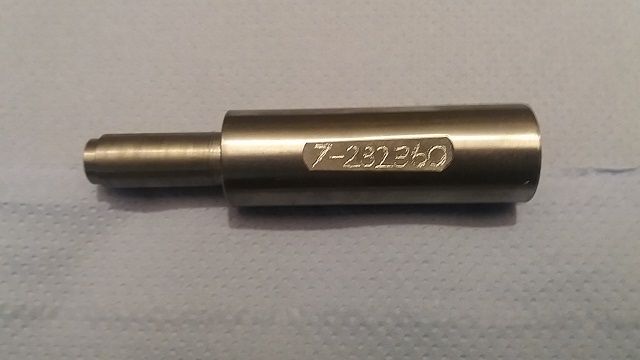

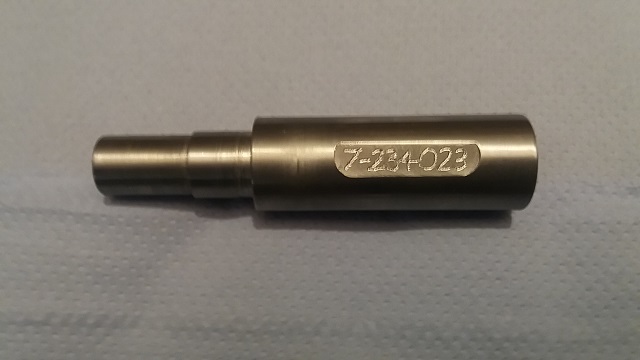

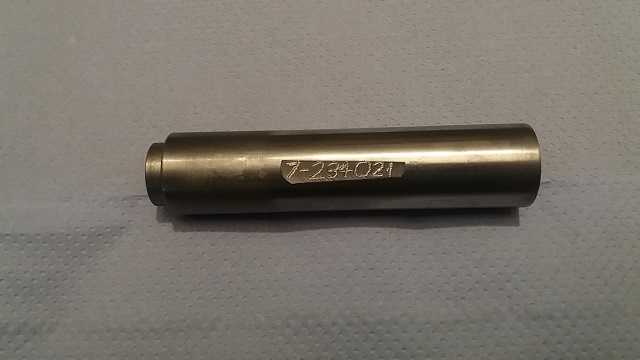

These tools are used to overhaul the shift pins in some BMW gearboxes.  The affected vehicles are shown in the following BMW Service Bulletins...

SIB 23 01 04 (063)

SIB 23 01 02 (881)

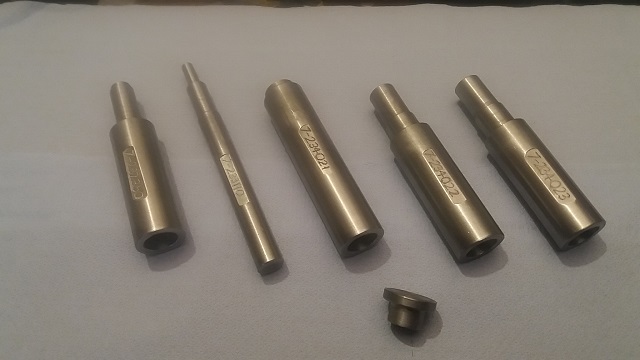

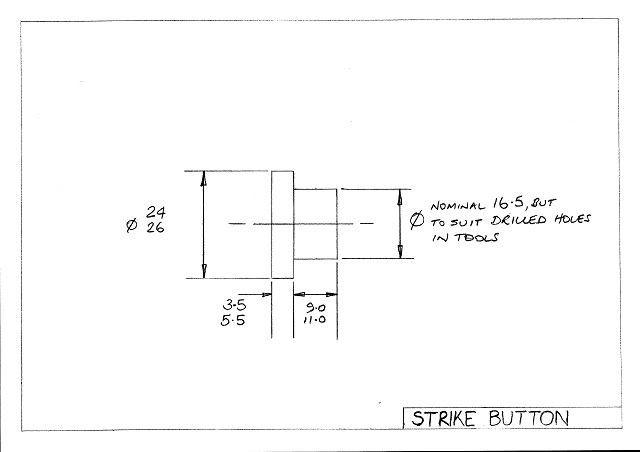

The small “button” is used to prevent damage to the tools when you use them.  The tools may be lightened to allow cheaper postage to be used.

Details of how to use the kit are shown here - http://www.eatsleeptinker.com/2013/10/26/service-bmw-transmission-shift-pins/

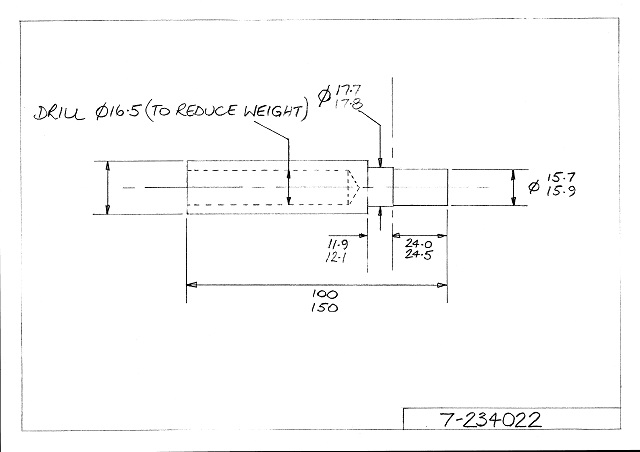

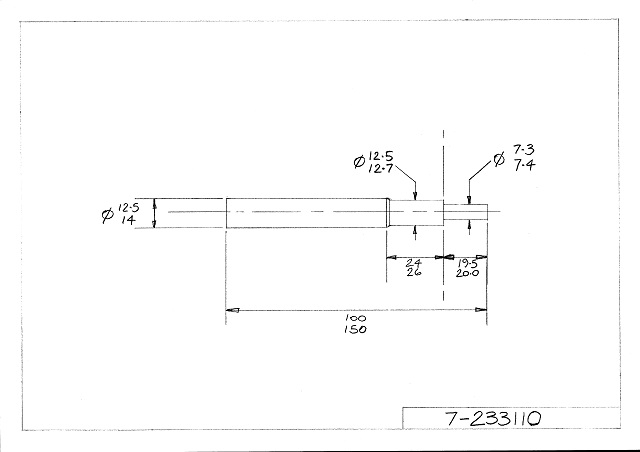

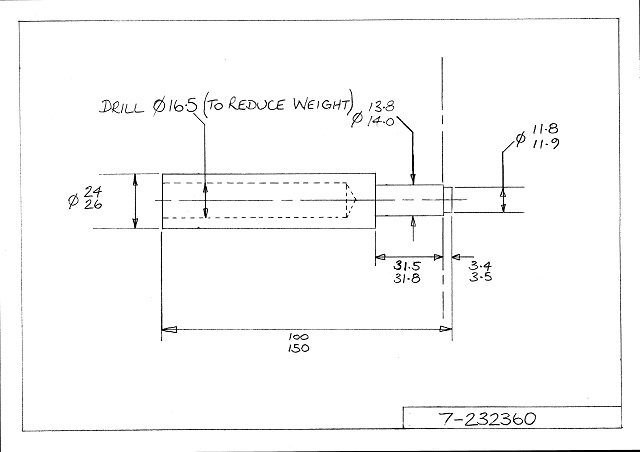

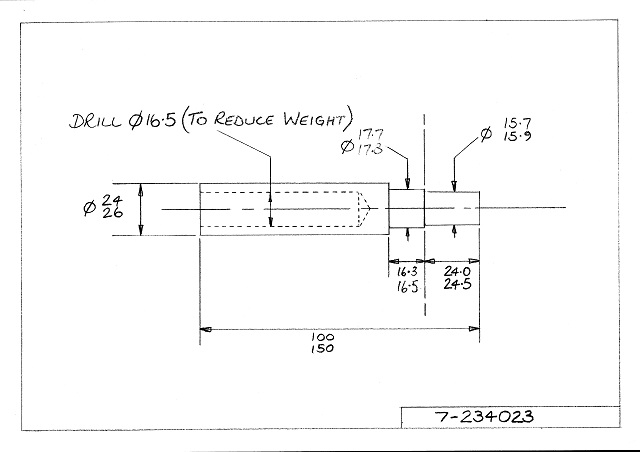

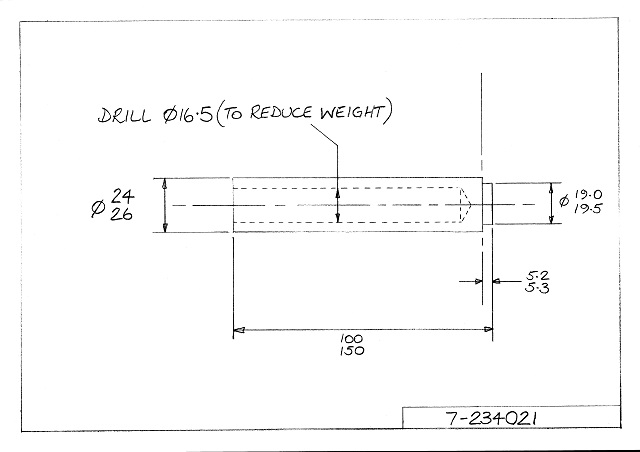

Feel free to use these drawings to make your own tools, or contact me and I’ll make them for you (but I only make them to order)...



















Below is a video that I made showing how to overcome some of the problems you may have...
